Trailer systems / Factory reference 233

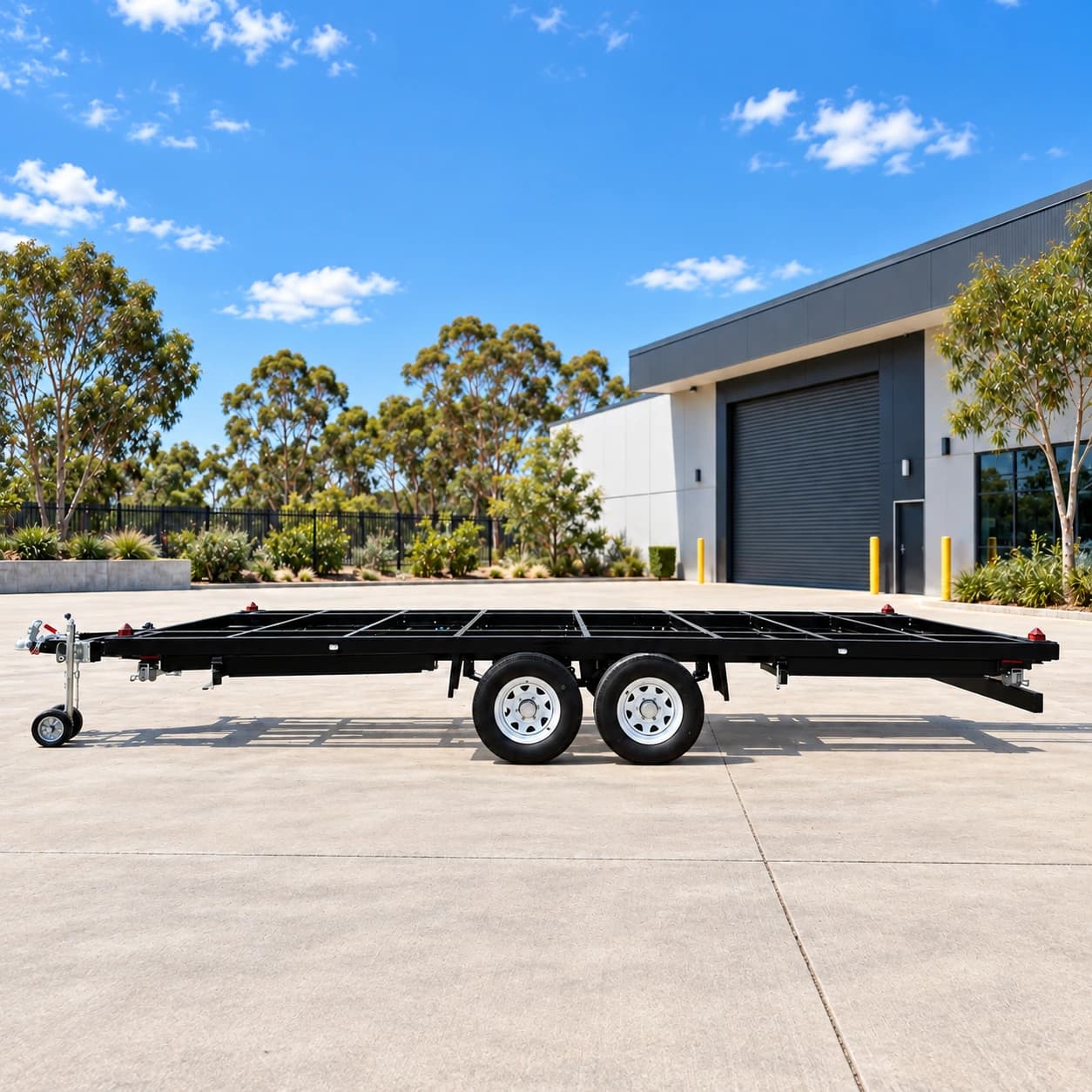

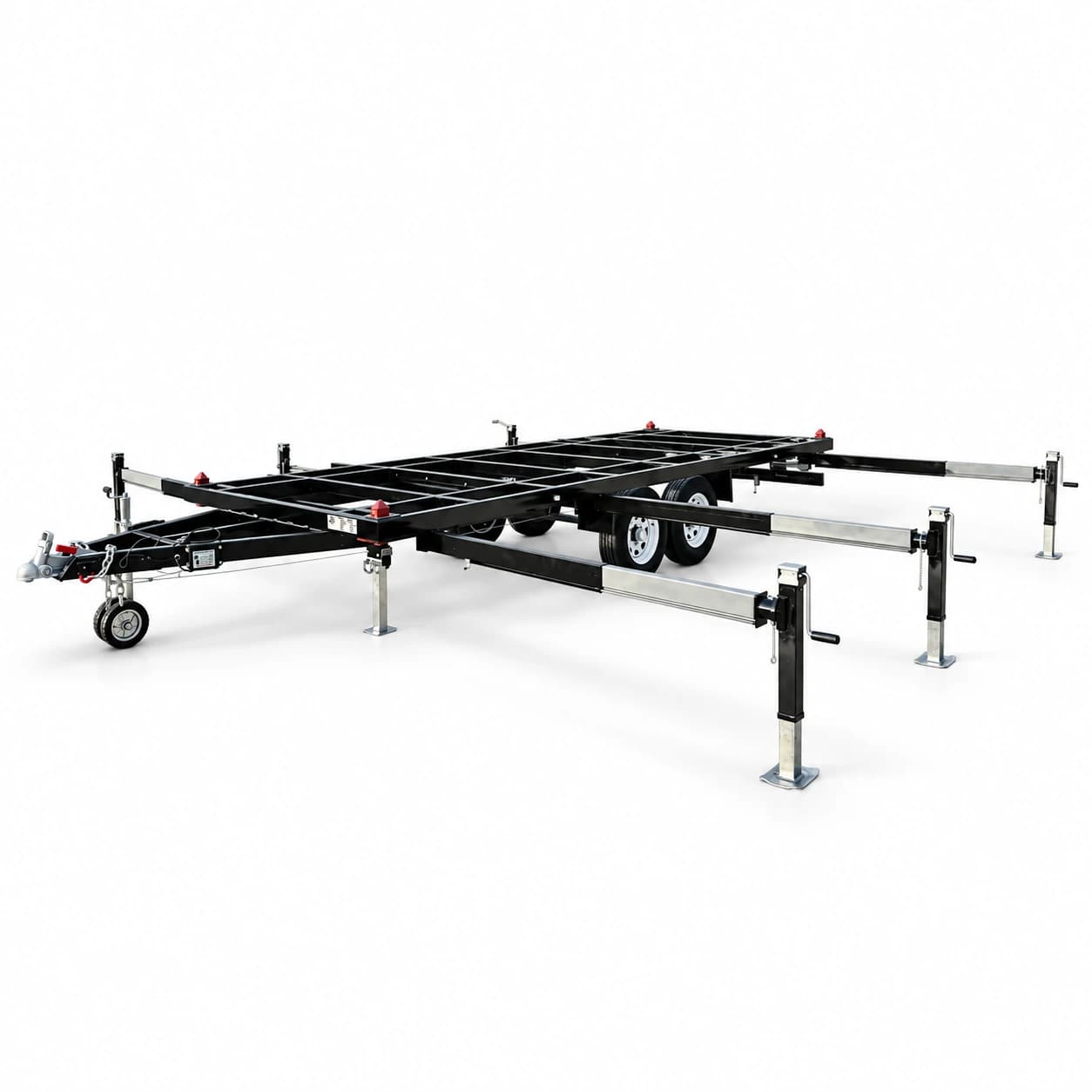

20ft Modular Cabin Trailer
A welded 20ft chassis reference for modular cabins, studios and project-specific builds, with electric drum brakes and stabilising support points.
The platform
Start with the load case, not the catalogue label.
This chassis is a preliminary factory reference. A suitable package depends on the completed module, actual mass, load distribution, mounting method, towing arrangement and the Australian approval pathway.
Manufacturer terminology and dimensions are retained for review. They are not a statement that a completed trailer-and-cabin combination is registered or approved for Australian road use.
Platform reference
5,900 × 2,250mm
Aggregate trailer mass
4,500kg
Factory tare reference
1,230kg
Support points
4 + 6
Known specification
A clear reference for the first engineering conversation.
Values below reproduce the current manufacturer listing. Final production drawings, tolerances, component ratings and approval evidence remain to be checked in writing.
Manufacturer sourceDeployment reference
See the chassis before the cabin changes the picture.

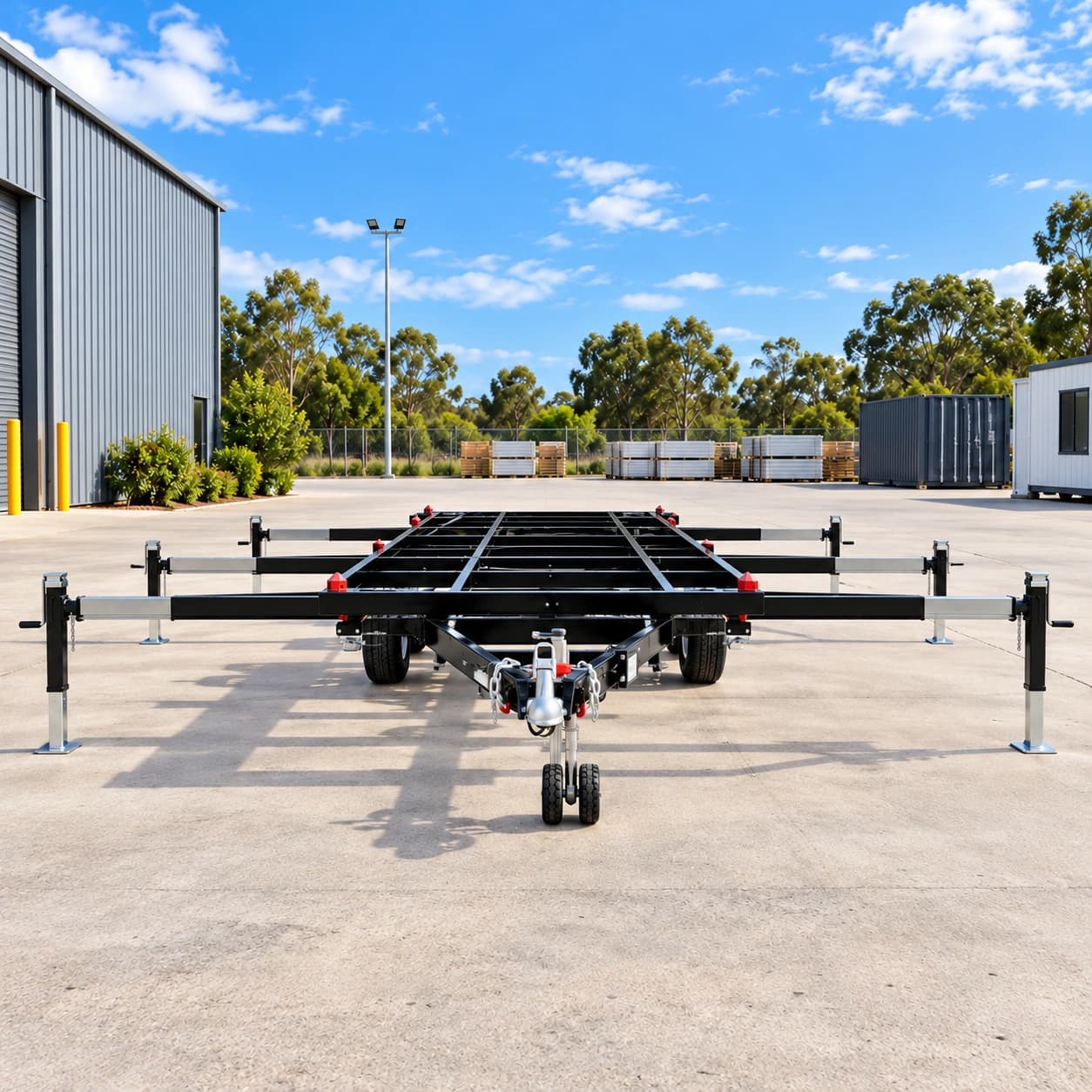

The extended support arrangement is useful for discussing placement and stability, but support-leg quantity alone does not determine foundation or occupied-use suitability.

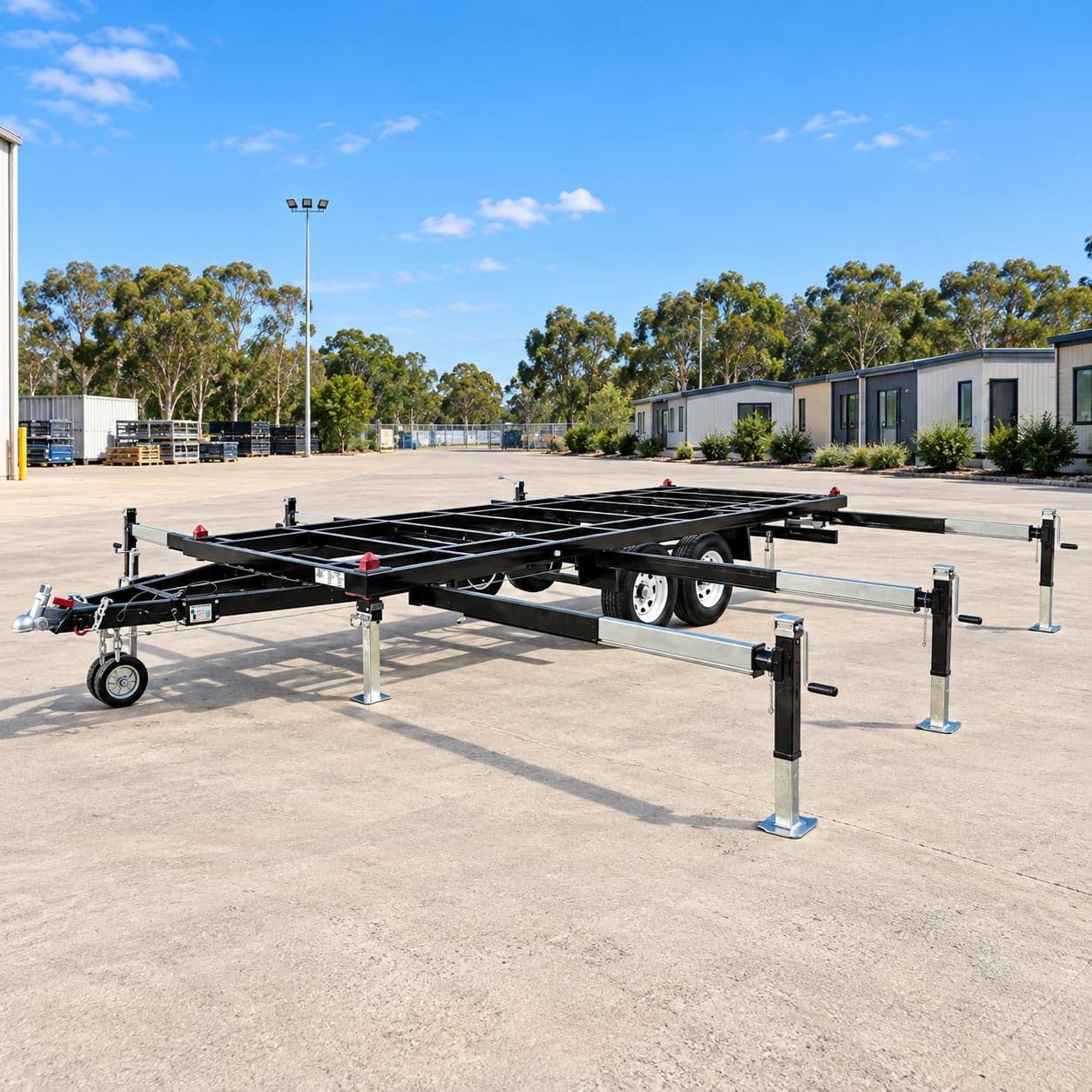

Supports deployed
Project fit
Three checks before this becomes your trailer.
01
Match the module
Confirm the completed cabin mass, mounting points, centre of gravity and required clearances against the chassis design.
02
Resolve the road package
Check axle loads, coupling, braking, tyres, lighting, dimensions and the intended towing and registration pathway.
03
Confirm the documents
Review current drawings, test evidence, VIN pathway, import approval and RAV requirements before supply is committed.
Current position
A candidate platform, pending the right evidence.
- Factory dimensions and component references recorded
- Pricing, lead time and final inclusions still to be confirmed
- Compatibility depends on the completed module and load case
- Australian import, RAV and registration pathway requires review
