Layouts
2
Two- and three-bedroom options
Configurable compact living
The Span 30
A two-wing expandable home that travels compactly, then opens into a broader everyday floor plan.
Product answers
The Span 30, in brief.
What is The Span 30 best suited to?
A two- or three-bedroom expandable-home brief where a compact 30ft transport form and an approximately 56.52 m² expanded footprint suit the site, access and intended use.
What type of product is it?
It is an expandable modular-home product. It travels in a compact format and opens on site; it is not a single-piece portable studio.
Which floor plans are currently shown?
A two-bedroom plan and a three-bedroom plan are shown. Final room dimensions, circulation, openings and service set-out require current supplier drawings.
What does the starting price cover?
The displayed figure is an indicative product starting price. Freight, placement, foundations, site work, approvals, professional fees, service connections and optional upgrades remain separate unless a current written quotation expressly includes them.
Where should NSW or Victoria approval checks begin?
Start with the intended use and property address. Review the relevant NSW or Victorian planning pathway, then confirm building, siting, access, foundation and service requirements with the responsible authority and qualified project team.
How does it differ from The Horizon 40?
The Span 30 is the smaller expandable format. The Horizon 40 has a larger nominal footprint and shows a three-bedroom, two-bathroom direction; that configuration still needs supplier confirmation.
Compare The Span 30 with The Horizon 40
Planning and cost guides
Published product information is checked against available supplier material. Where a source does not establish a price or configuration, that limitation is stated in the product information.
Product snapshot
The practical shape of The Span 30.
These figures describe the current supplier reference, not an approved construction set. Site, freight and compliance decisions still require current documentation.
Bathroom
1
Vanity, shower and toilet shown
Expanded floor area
56.52 m²
Nominal 9.0 × 6.28m footprint
Transport weight
Approx. 7,000kg
Confirm before freight planning
Compact 9.0 × 2.25m nominal transport footprint
Expandable side wings around a central service core
Kitchen cabinetry and full-length overhead cupboard referenced

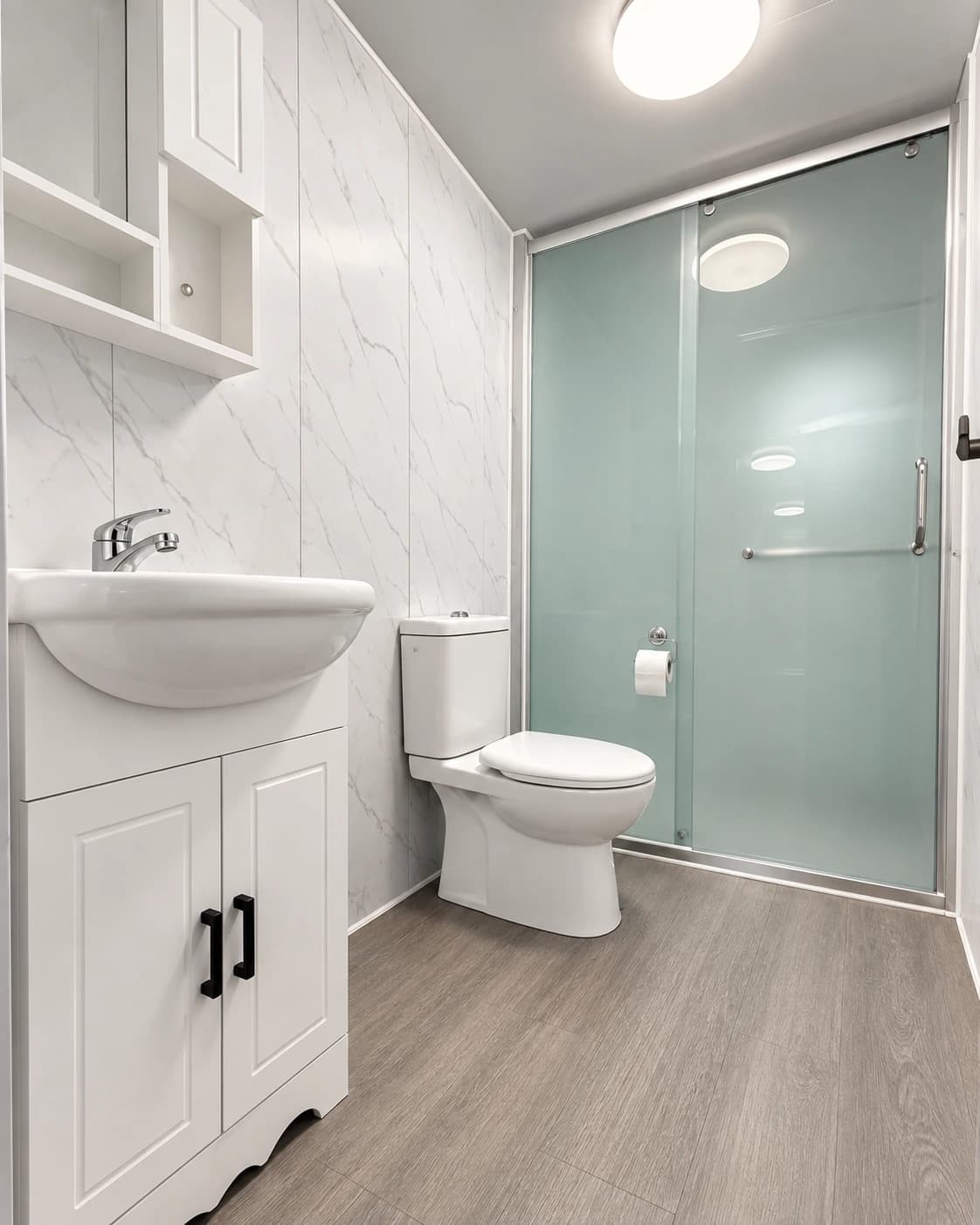

Bathroom reference includes vanity, shower and toilet
Pitched roof, cladding, verandah and SPC flooring treated as separate options
Product dossier
Compare your floor plans.
Compare the reference layouts and starting prices, then customise your chosen plan. Final dimensions, inclusions and site requirements are confirmed in writing.

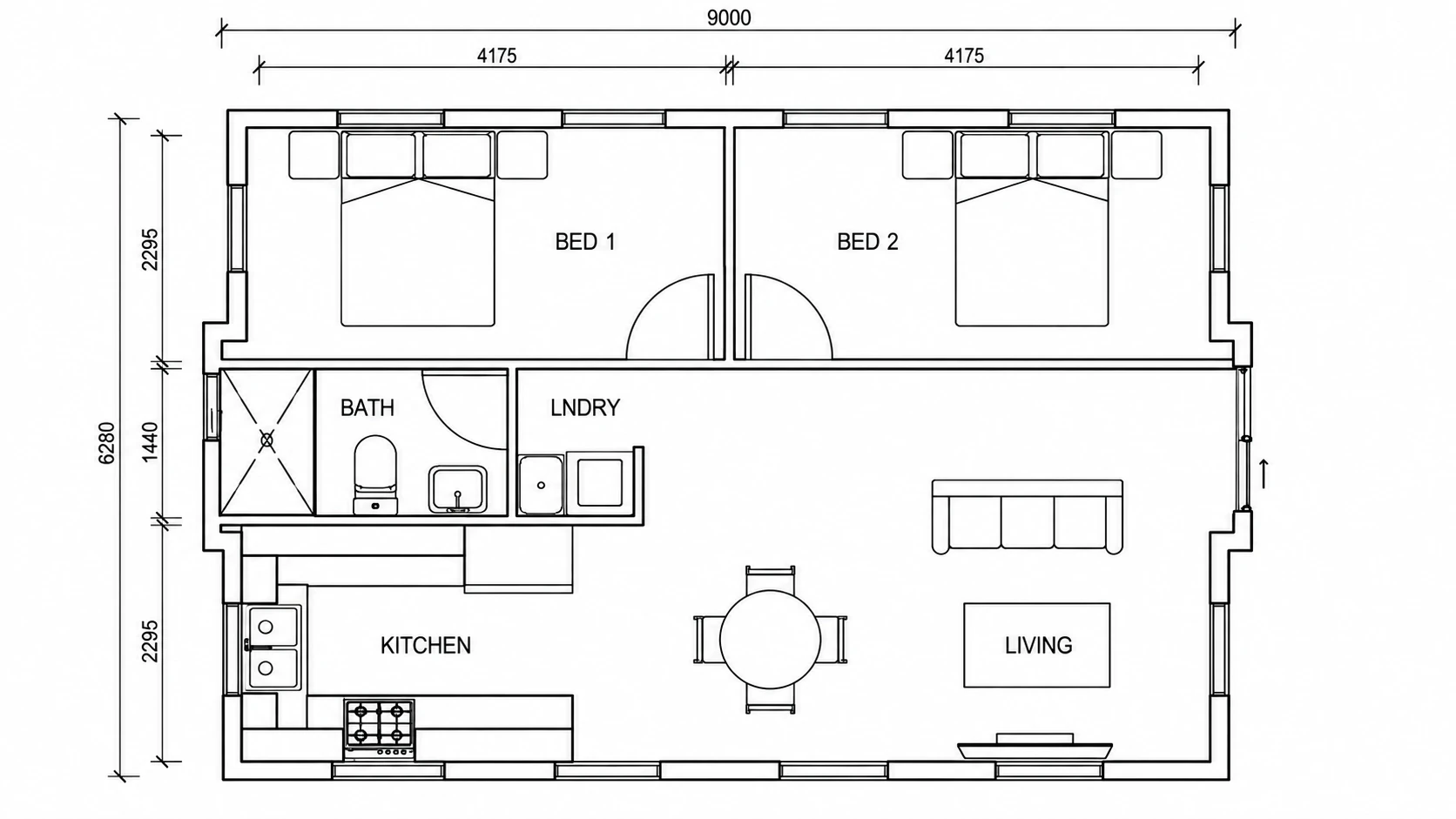

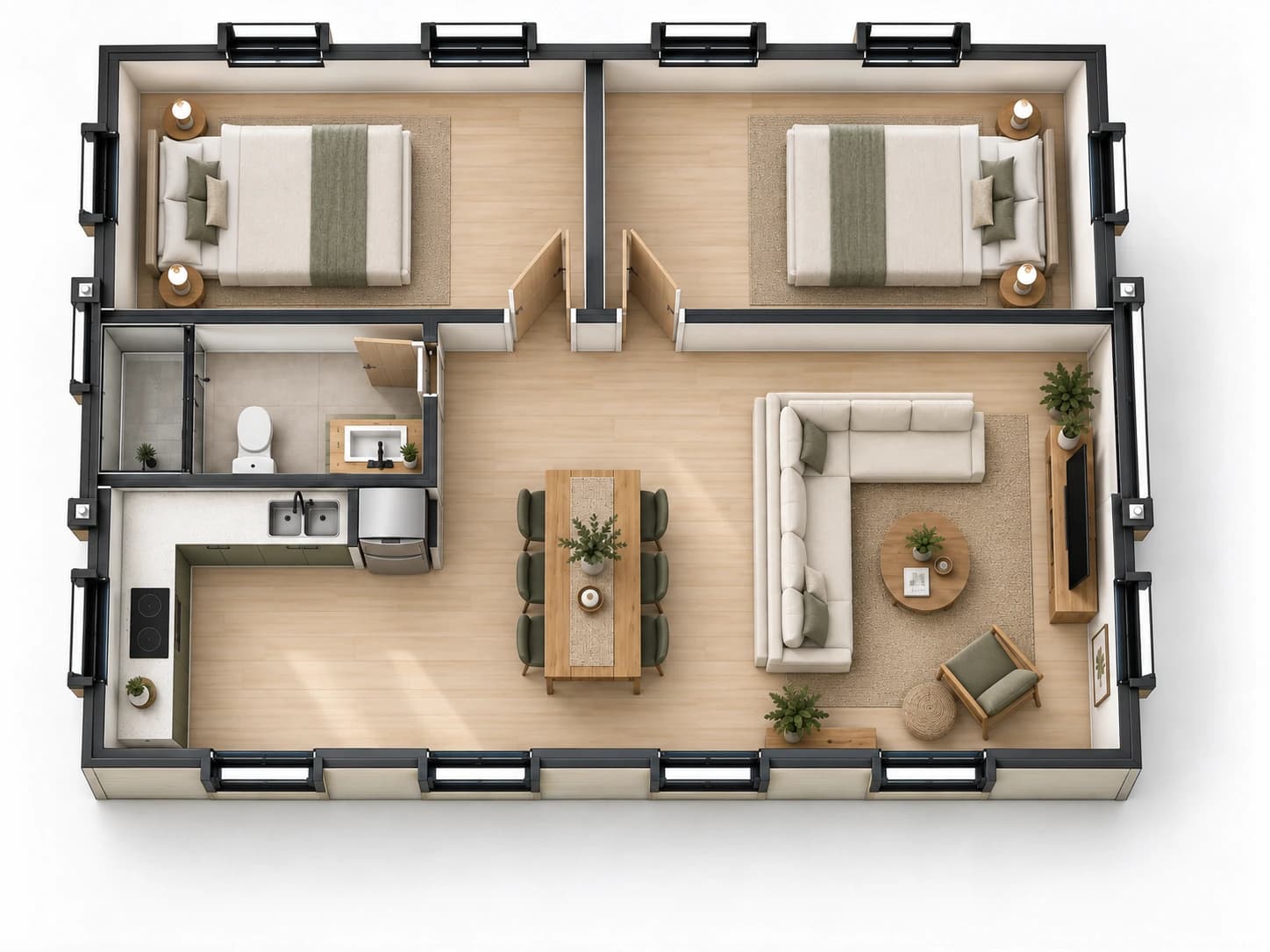

Two-bedroom plan · A
From $55,000
Choose this layoutThree-bedroom plan · B
From $55,000
Choose this layout- Transport size
- 9,000 × 2,250 × 2,530mm
- Expanded size
- 9,000 × 6,280 × 2,530mm
- Expanded area
- Approx. 56.52 m²
- Weight
- Approx. 7,000kg
Dimensions and quote checks
The expandable structure changes width on site. Final tolerances, clearances and set-out information must come from current supplier drawings.
Transport size: Nominal L × W × H. Expanded size: Nominal L × W × H. Expanded area: Calculated from nominal footprint. Weight: Buyer-supplied reference; freight confirmation required
- Current engineering, glazing and electrical compliance evidence
- Final room dimensions, opening schedule and service locations
- Freight weight, route, crane or placement requirements
- What is included in the product price versus optional upgrades
- Site works, foundations, approvals and utility connections
Around the home
See the space from more than one angle.
Images illustrate finish and layout directions. Final inclusions, colours and fixtures are confirmed in the written project scope.
Charcoal retreat
Configure yours
Shape the home around your project.
Work through one decision group at a time. Your selections form a clearer enquiry brief, not an instant purchase price.
Exterior
Shape the external palette while keeping availability visible.
A clearer starting point
Who is The Span 30 best suited to?
The Span 30 suits buyers comparing a two- or three-bedroom expandable home with a compact transport form and a broader on-site footprint. It is a product starting point, not a complete installed-home price: intended use, land, access, approvals, services and installation still need to be assessed for the property.
Information status
Product details reviewed . Supplier documents support some format and dimension references; prices and model-specific details still require written confirmation.
- 01
Choose the plan by use
Compare the two-bedroom and three-bedroom layouts before confirming room dimensions and circulation.
- 02
Start with the property
Check the NSW or Victorian planning pathway, site access, foundation approach and service availability early.
- 03
Separate product and project cost
Use the configurator for the preliminary product scope; budget site work, freight, placement, approvals and connections separately.
NSW approval starting pointPlanning and building pathwaysVictoria approval starting pointPermits and site checksSite works and delivery costsWhat sits outside product pricePrepare a modular home siteAccess, services and early checks
Compare another format
Scope language
Keep every choice in the right column.
Included
Shown in the current written supplier scope or reference material.
Optional
A requested upgrade or service that needs its own written quotation.
Site-specific
Transport, placement, connections and approval work assessed for the property.
